Installation · NC500 · Trial run

Commissioning and upkeep from NC500 Installation Manual V1.2. Operating sequence: key ON → HMI self-test → parameters → START.

NC500 Installation

Control Panel & Trial Run

Run manual-mode tests for press plate, feed motion, and drag chain before automatic production.

← NC500 Installation & Commissioning Guide

Control panel operation

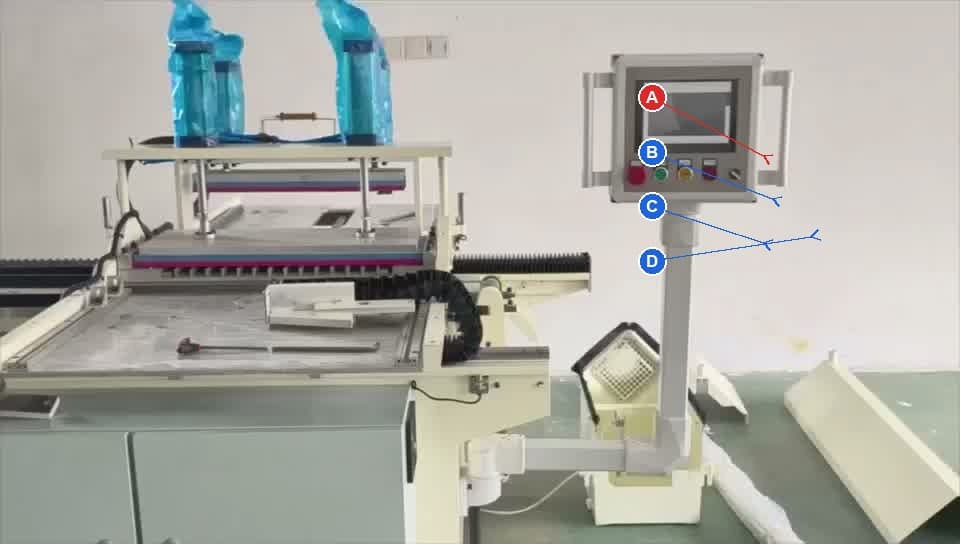

Red stop, green start, touchscreen, and emergency stop are on the cantilever-mounted panel.

NC500 control panel components — Fig. 16 — Control panel

Trial run & acceptance

Complete no-load tests in manual mode before loading material.

Pre-run: power + air connected; E-stop functional; travel path clear
Manual mode: test press plate, feed, drag chain separately
With material: align feed rails; run automatic mode; check processing result
Acceptance: level OK; smooth motion; no air leaks; no electrical alarms

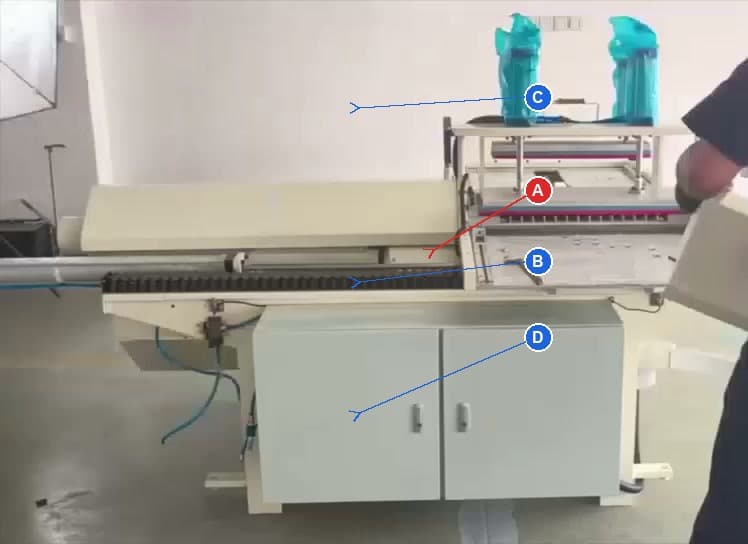

NC500 trial operation — Fig. 17 — Trial operation

Maintenance schedule

Follow the interval table to keep feed accuracy and pneumatic reliability.

Daily: clean work surface and brush bar; check E-stop
Weekly: inspect air fittings; clean drag chain
Monthly: lubricate screw and guides; tighten loose bolts
Quarterly: replenish lubricating oil; check sensor sensitivity

Troubleshooting FAQ

Press plate does not move or moves slowly?

Check air pressure, blue line leaks/kinks, and confirm cylinder protective film was removed.

Feed motion stutters or jams?

Lubricate ball screw and guides; verify bellows cover clearance; check motor coupling.

No display on control panel?

Confirm key switch ON; verify power wiring and touchscreen rear cables.

Unsatisfactory processing result?

Re-adjust three white press-plate screws; check feed guide alignment; reset HMI parameters.
